Xylem Bell and Gossett recently announced the new System Syzer programs for your computer. You may download these through links on our website at the www.deppmann.com/resources/ page.
The flow/pressure drop tab can be an extremely important tool. ASHRAE 90.1-2010 standards Table 6.5.4.5, introduces new sizing data for hydronic systems. The maximum recommended flow rate depends on three factors: velocity, number of expected operating hours of the system, and whether the system is variable flow/variable speed or other.
Let’s look at an example. Assume you have 1500 GPM. What is the minimum pipe size should you use? The answer is: it depends! Check the screenshots below.

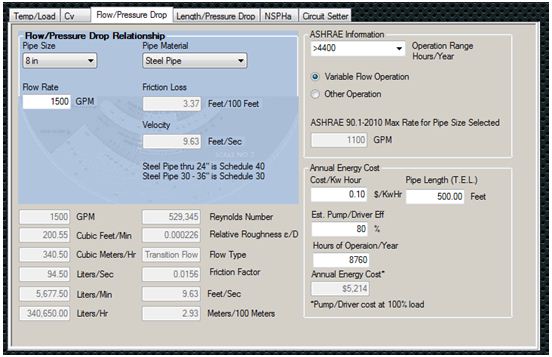

8” pipe is too small if you are operating over 4400 Hours per year Variable speed. |

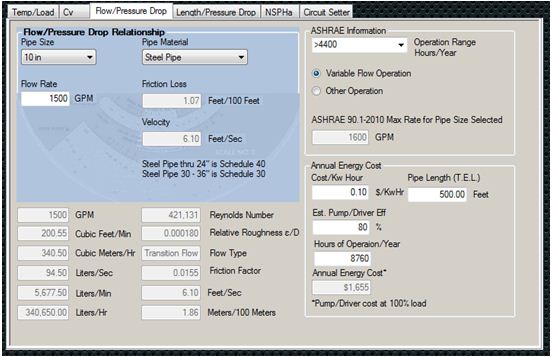

10” pipe is correct if you are operating over 4400 Hours per year Variable speed. |

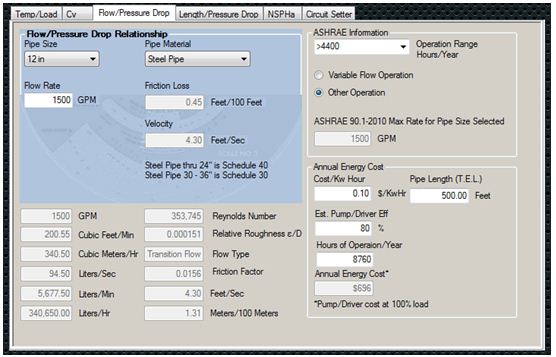

12” pipe is correct if you are operating over 4400 Hours per year and not Variable speed. |

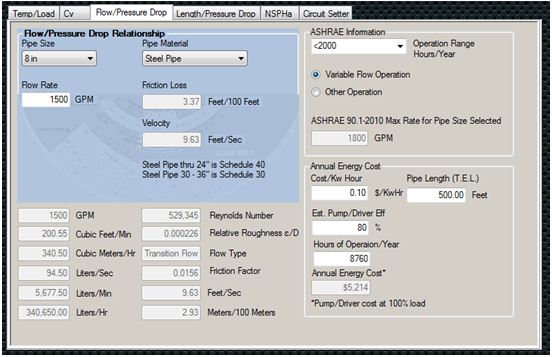

8” pipe is correct if you are operating less than 2000 Hours per year and Variable speed. |
Download the program and experience the power of this new tool from Bell and Gossett.
