Maintenance Free Pumps

• NRF22 & NBF22
  • Wet Rotor Circulators
  • High Staring torque provides years of trouble free start-ups
  • Unique DuraGlide Bearing System assures whisper-quiet, maintenance-free operation
  • Closed impeller design improves operating efficiency
  • 3 Year Warranty against failure as a result of defects in materials or workmanship.
  • UL and cUL Listed

For more information:
NRF Brochure
NBF Brochure

• The PL Series
  • Easily handles dirty water conditions
  • Rugged, compact design
  • 25% more efficient than the competition
  • Close-coupled dry motor
  • Permanently lubricated Sealed precision bearings
  • Quiet operations in hydronic, radiant and geothermal
    heating and cooling systems
  • Available in cast iron and bronze pump body

Click here to learn more on the PL Series

Oil Lubricated Pumps

• Series 100 Three-Piece,
  Oil Lubricated Booster Pump
  • Oil lubricated design provides for easy field service with bearings, shaft and seal all housed in an assembly which can be easily repaired or replaced.
  • The Series 100 oil lubricated motor is specifically designed for the series 100 and its resilient mounting provides quiet, dependable service with minimum annual lubrication.
  • UL and CSA listings are standard.
  • The design of this motor, coupled with its overall hydraulic performance, allows the Series 100 to
    overcome system related noise caused by valves, fittings or piping.

Series 100 Brochure Information

Commercial Pumps

• Series 60 In-Line Mounted Centrifugal Pump
  • Maintenance free in-line pump available in sizes from 1” to 3”
  • Motor sizes from 1/4 to 3 HP at 1750 RPM
  • Available in bronze-fitted and all bronze construction
  • Flows to 200 GPM and heads to 55 feet
  • Provides a worry free, install and forget installation
  • Incorporates the patented XL-11 precision-crafted bearing system and its permanently lubricated motor
  • The hydraulically balanced impeller and resilient motor also help provide smooth, quiet operation
  • 3 Year flange to flange warranty

Series 60 Product Brochure

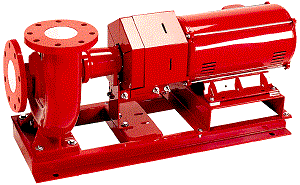

• Series 1510 End Suction Pump
  • Base-mounted, end suction pumps are available in 1-1/4” through 8” sizes
  • 1/2 HP to 150 HP at 1750 RPM and 2 HP through 150 HP at 3500 RPM
  • Bronze-fitted, all-iron and bronze material configurations are available with flows to 4000 GPM, heads to 500 feet.
  • Integrally cast volute foot and center drop-out spacer coupling combine to offer true back pullout capability, providing low-cost ease of maintenance.
  • An ASNI-OSHA compliant coupling guard shields the flexible coupler.
  • The self-flushing mechanical seals ensures maximum seal face lubrication, heat dissipation and debris removal without vulnerable, external flush tubing.

Series 1510 Product Brochure

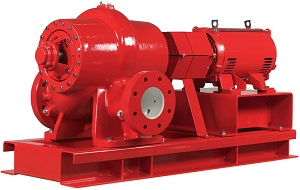

• VSX Double Suction Split-Case Pump
  • Only the VSX platform offers so many piping installation configurations, thanks to its revolutionary design.
  • We can deliver identical hydraulic performance in any flange configurations: VSC (top-top), VSCS (top-side) and VSH (side-side)
  • Every model and size is available in either right or left hand rotation providing up to six possible installation configurations.
  • This pump is available in 25 sizes
  • Only the top suction and discharge flange offering of the VSC offers exceptional space savings.
  • Utilizing a VSC model can reduce your equipment footprint by up to 40 percent over traditional double-suction and large vertical inline pumps.
  • Flows from 500 to 28,000 GPM / 114 to 6400 m3/h
  • Heads from 30 to 530 feet / 9 to 161 meters
  • Working pressures of 175 and 300 psig / 12 and 20 Bar
  • ANSI flange ratings of 125# and 250#
  • Temperature 0 to 300°F / -17 to 148°C

VSX Technical Brochure
